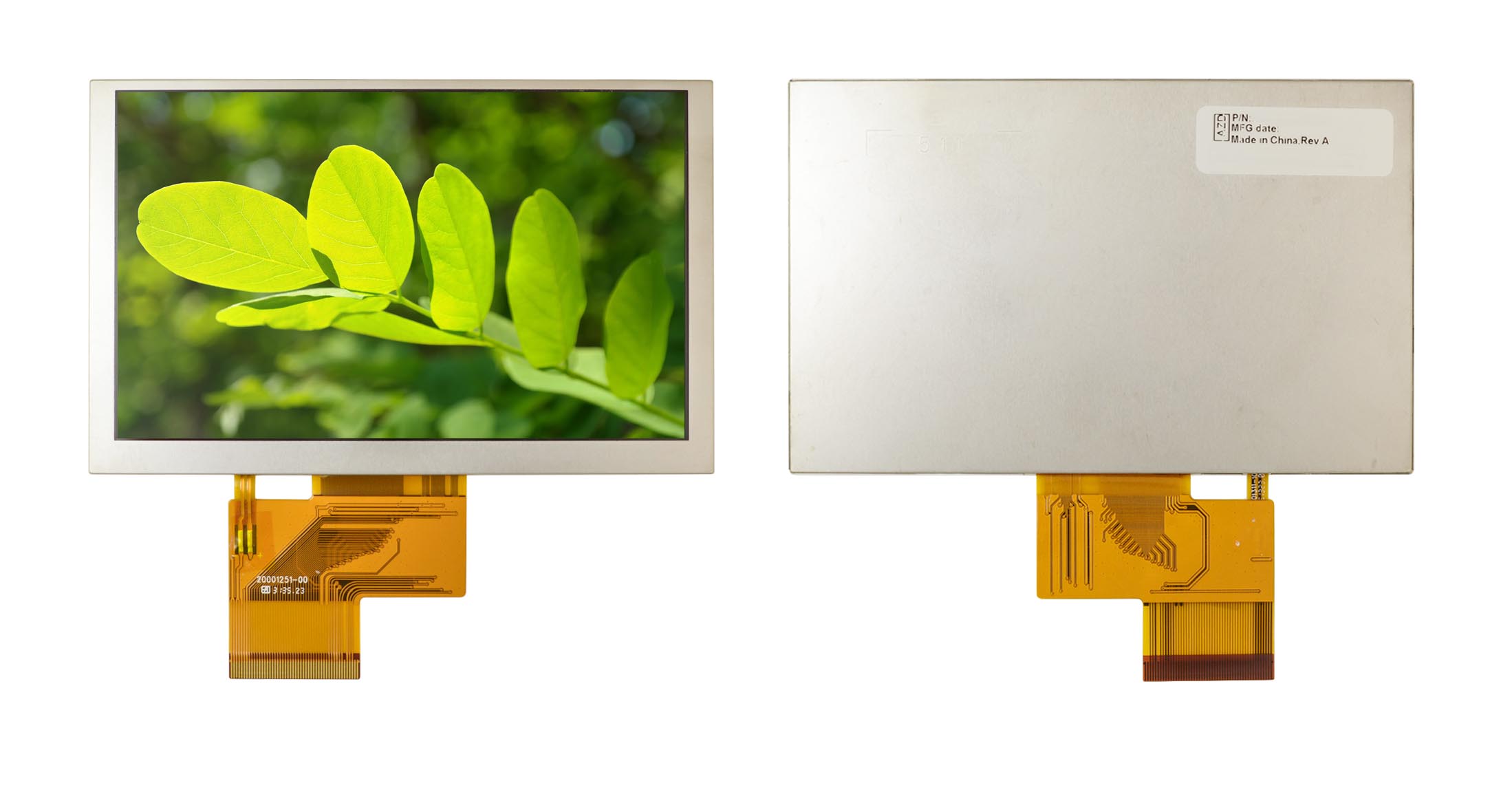

ATM0500D19E

Quicklinks:

Features

  • 800 X RGB X 480
  • 16M Colors
  • LED Backlight
  • Digital RGB Interface
  • RoHS Compliant

Module Specifications

Overall Module Size5"
Resolution800XR.G.B.X480
Brightness (Nits)520
Contrast800
Back LightLED
Viewing Angle+80/-80
+80/-80
Operation Temperature (℃)-20~+70
Storage Temperature (℃)-30~+80
InterfaceDigital RGB
Active Area108.0X64.80mm
Outline Dimension120.7X75.8X3.0mm
Viewing Direction12 O'clock
Pixel ConfigurationStripe
